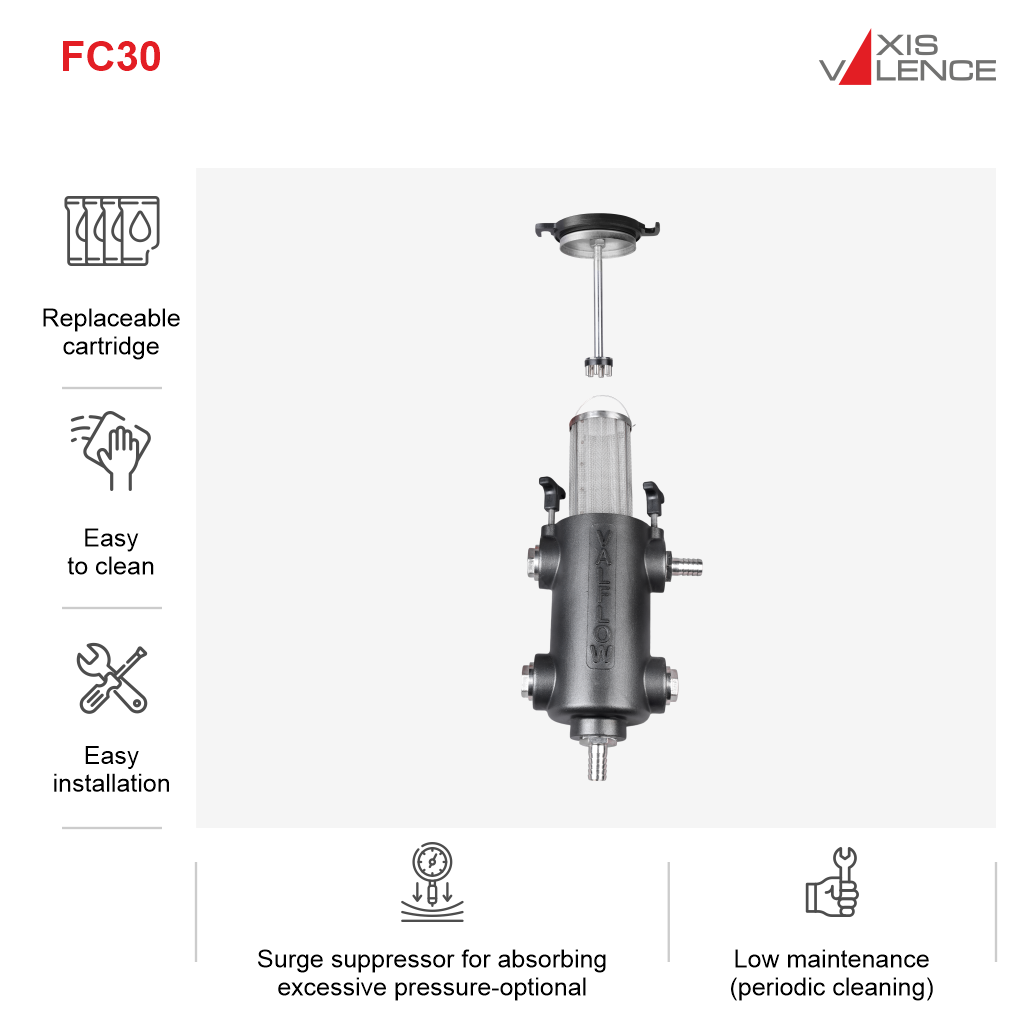

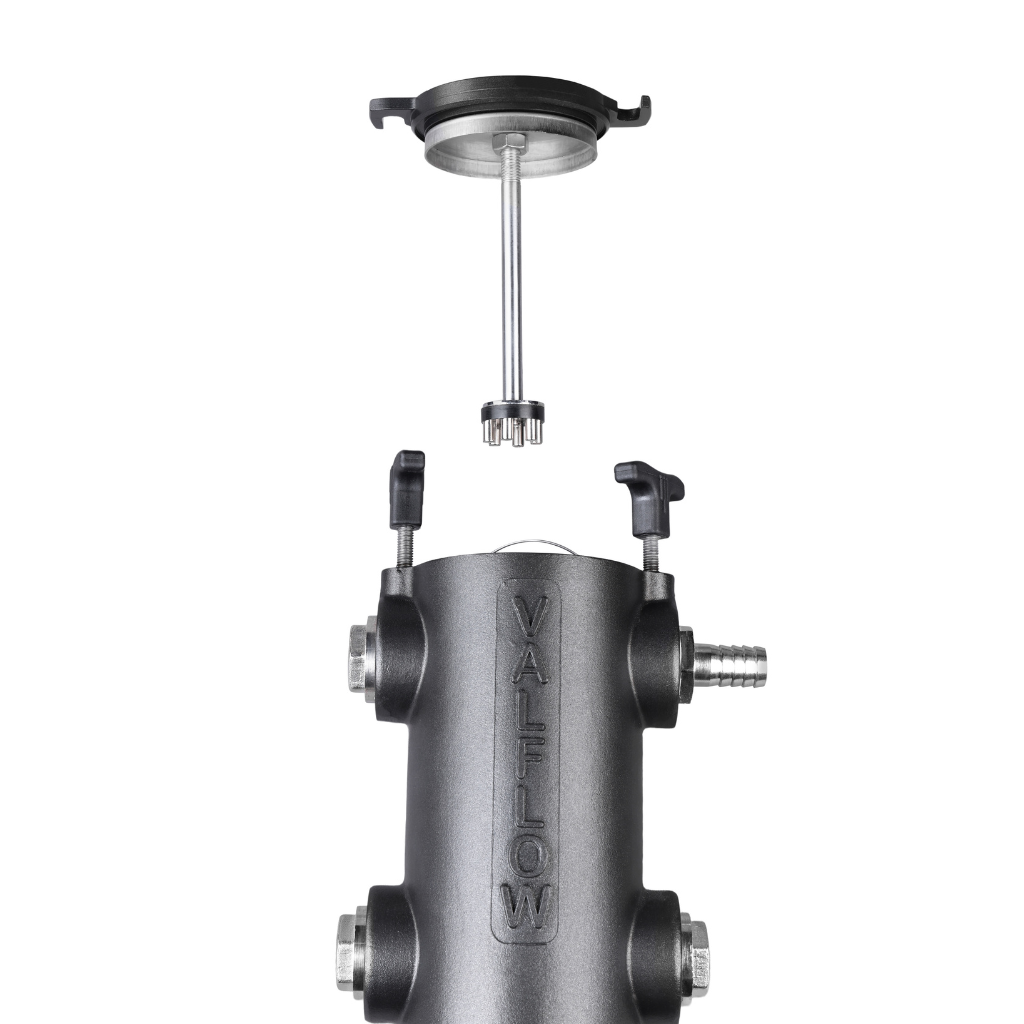

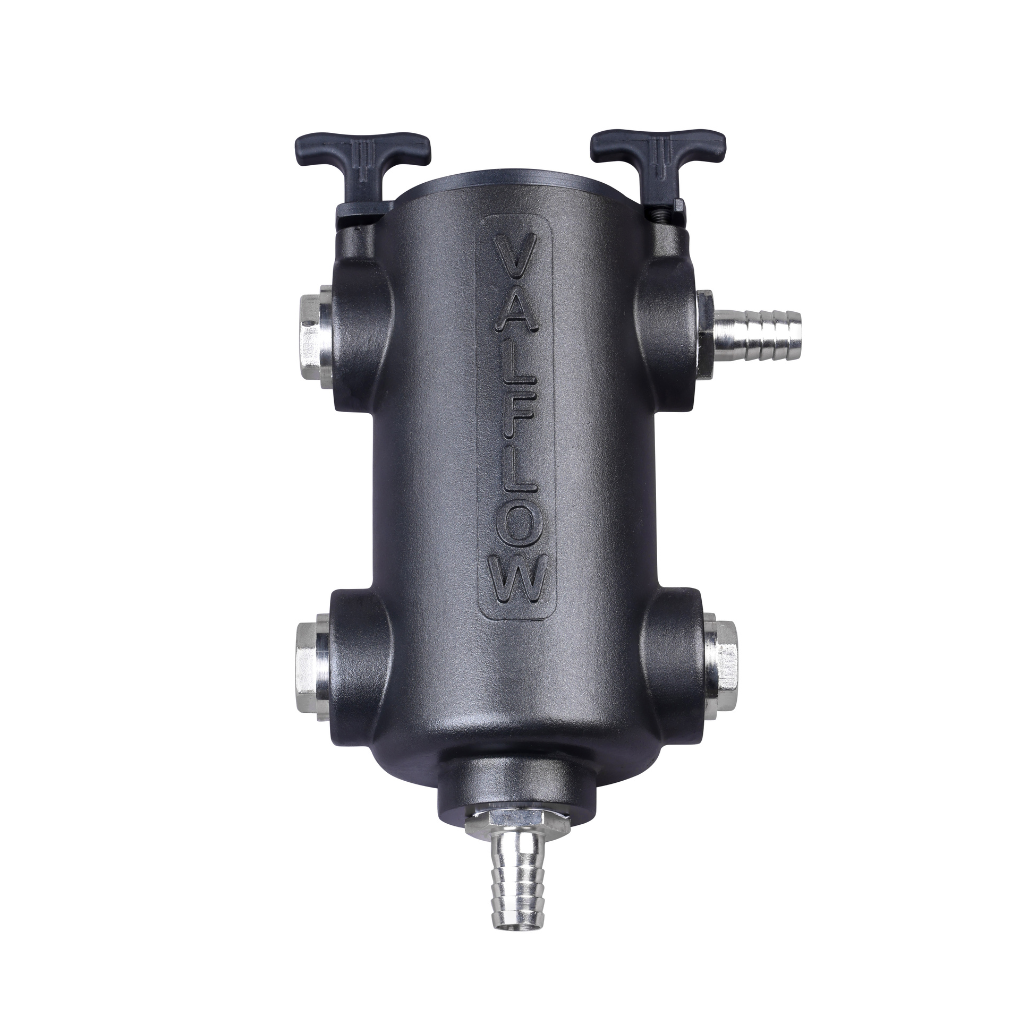

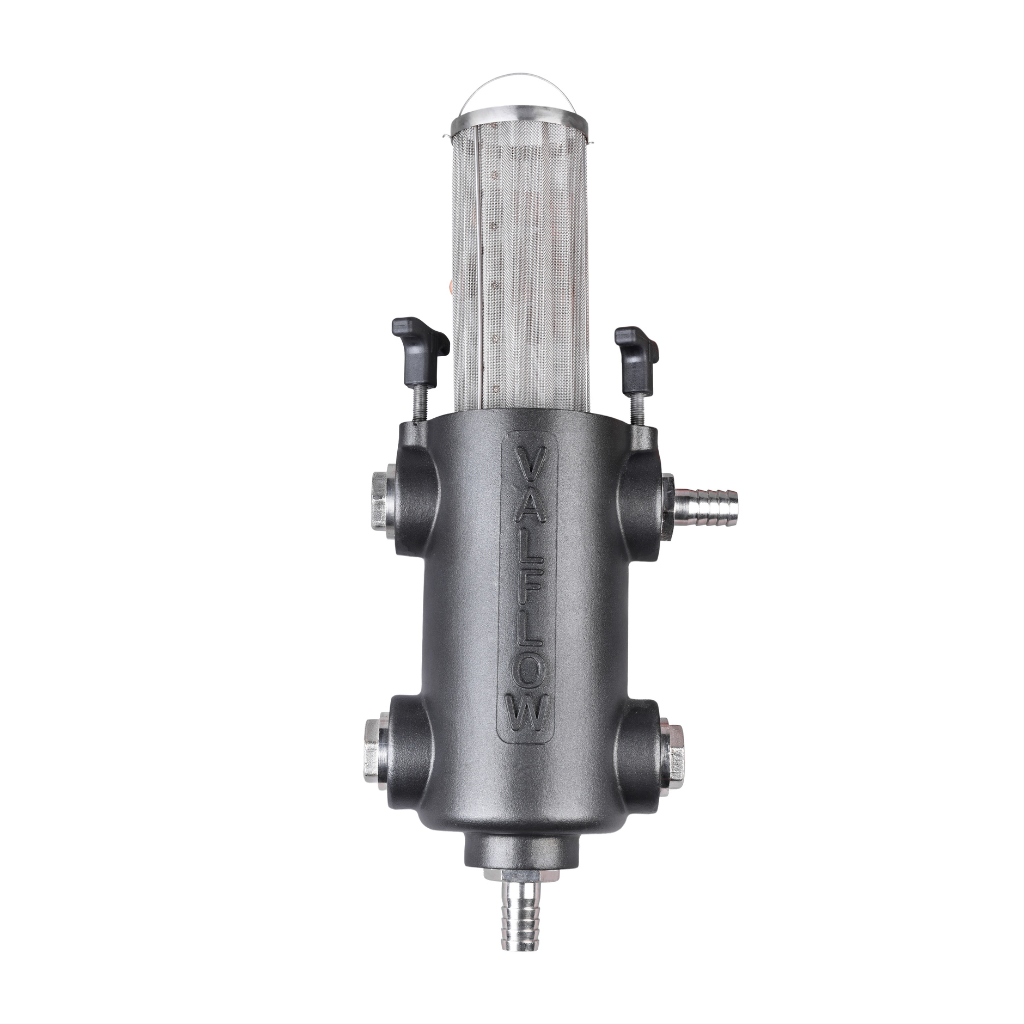

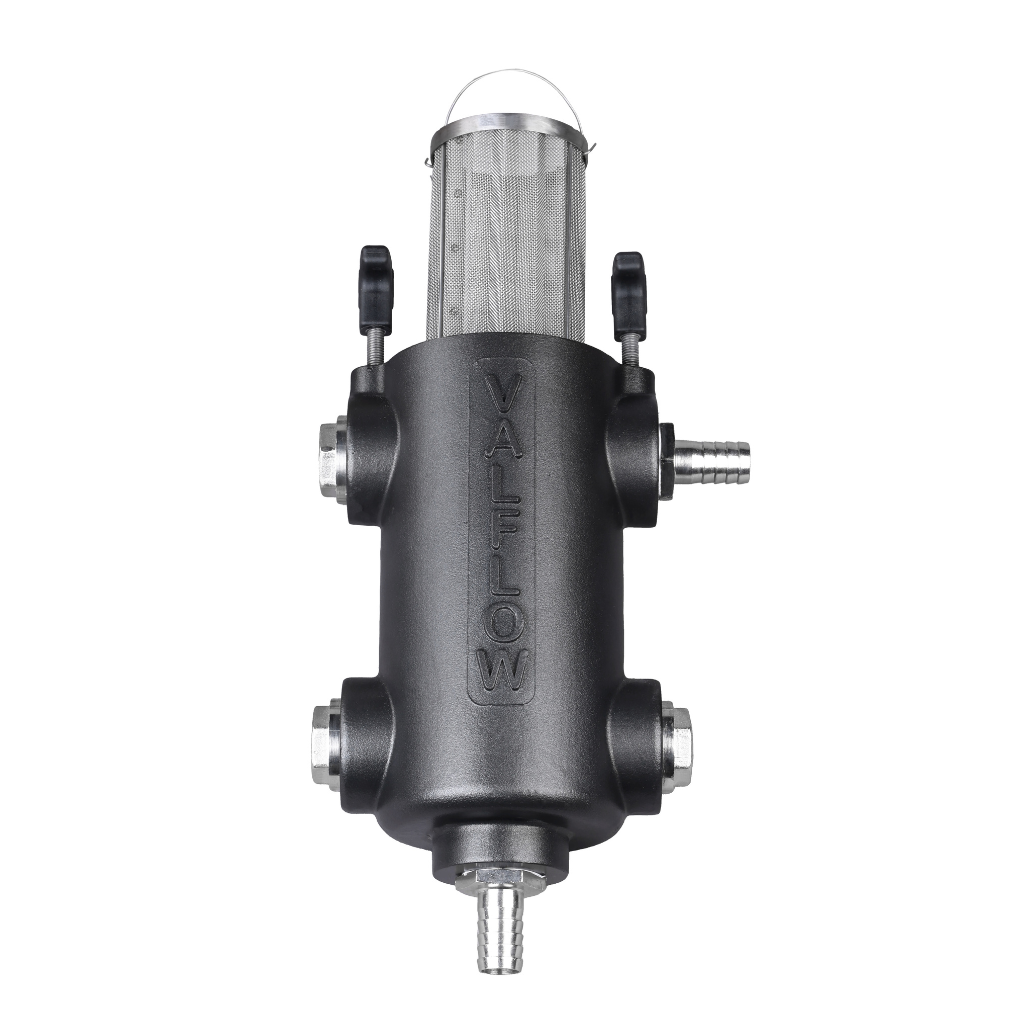

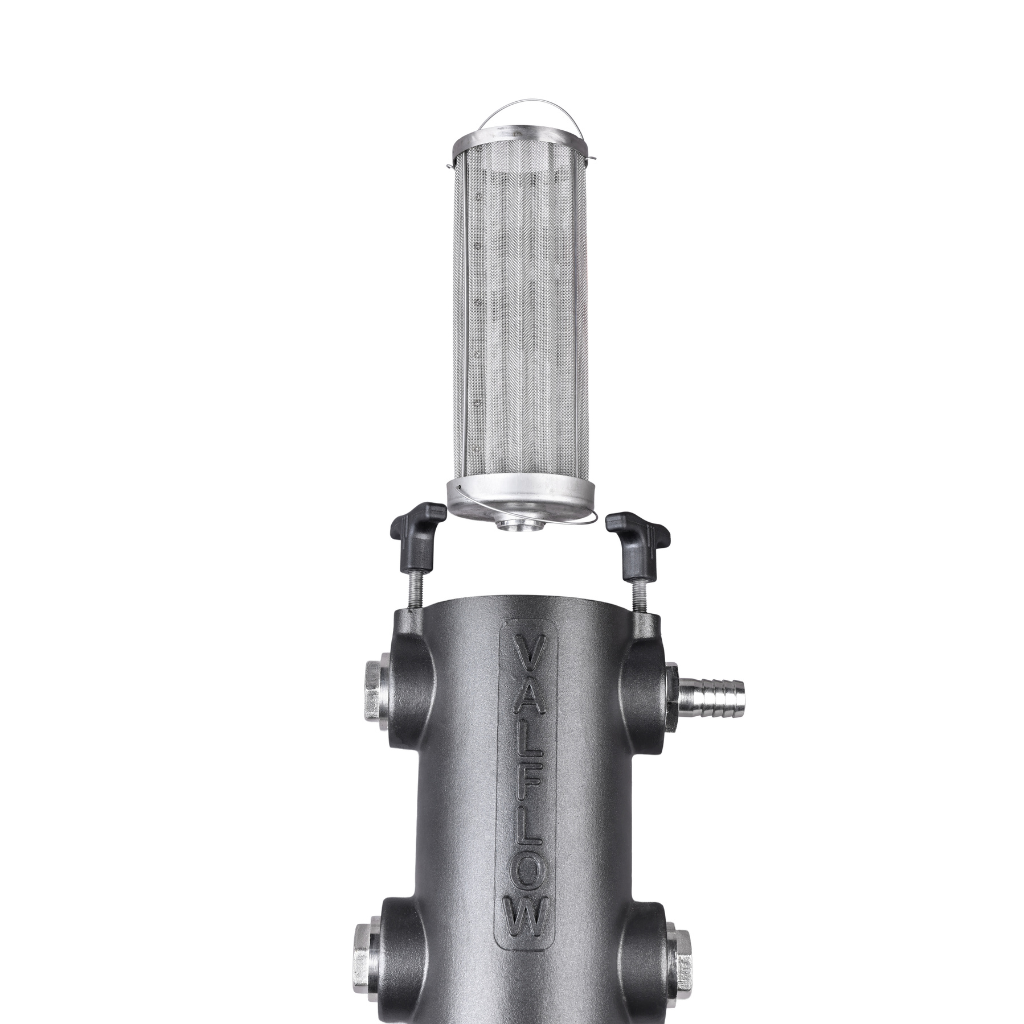

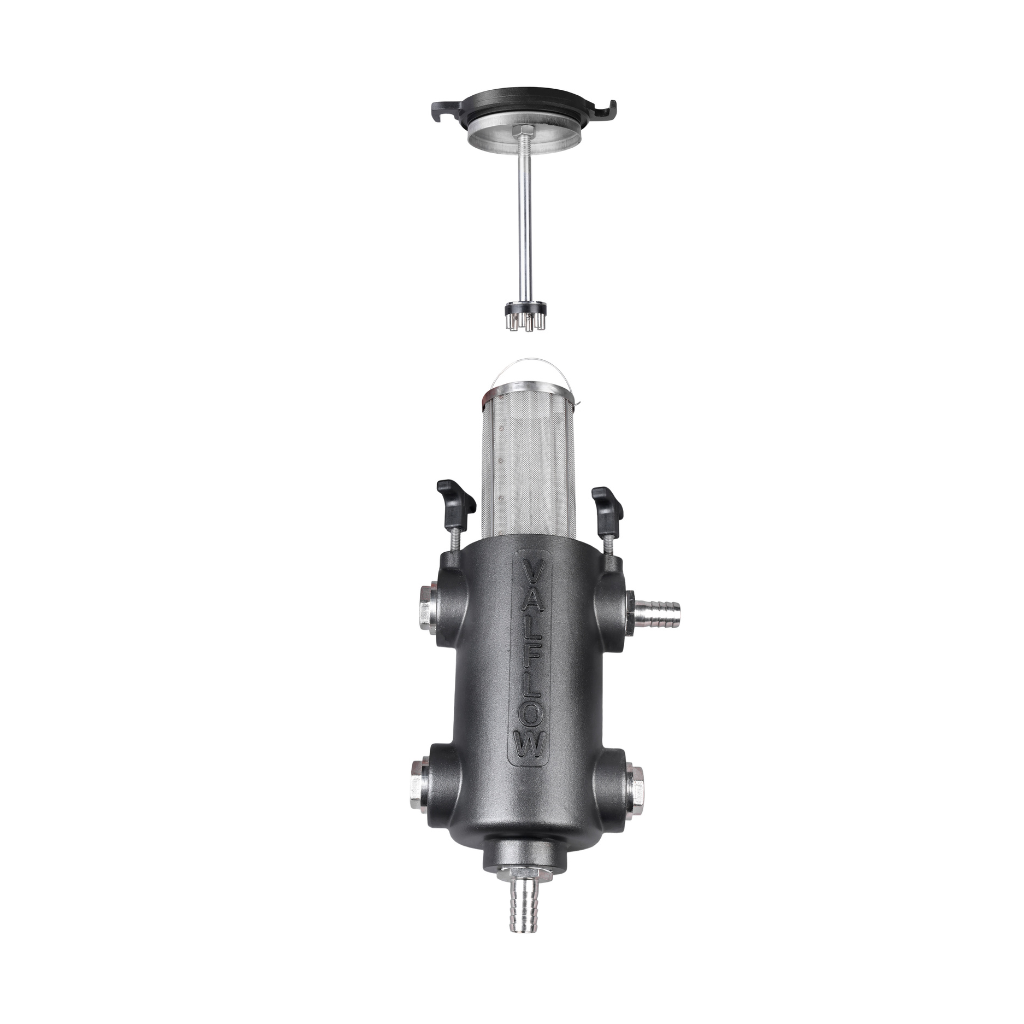

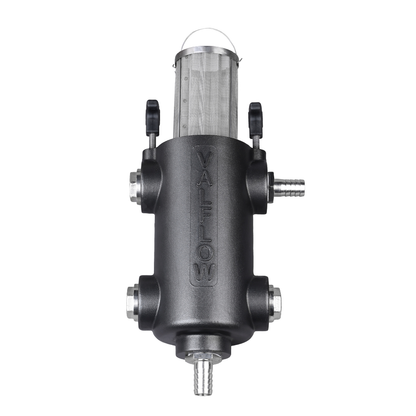

Valflow® FC30 Ink filter,with magnet washable SS cartridge-30 mesh
Valflow® FC30 Ink filter,with magnet washable SS cartridge-30 mesh
Loading options...
Couldn't load pickup availability
Valflow filters can be used on rotogravure printing, coating, and laminating lines to remove contaminants in inks, coats, and adhesives through mechanical (filter mesh) and magnetic means, thus ensuring good print or coat quality. Valflow filters perform two major functions – circulating along with the ink or coats are contaminants from three major sources: air (that carries dust and fiber), doctor blades (a source of metallic particles), and fluids (that contain undissolved solids and pigments).
Valflow filters capture these contaminants and allow only clean fluid to pass through, thus ensuring good print or coat quality. The standard Valflow® ink filter is designed for centrifugal pumps.
- Ensures good ink or coat quality
- Dual filtration (mechanical and magnetic) ensures thorough removal of contaminants
- Overall size: 330mm x 200mm
- Mesh material: Stainless Steel SS304
- Mesh size: 30 or 60 meshes per inch
- Inlet and Output size:1"" BSP
- Connectivity: Through hose pipe
- Cam-lock coupling size(optional): Suitable for 3/4"" hose
- Hose nipple size: 1"" x 3/4"" is a standard, Other options are available
- Ambient temperature: Up to 40° C
- Storage temperature: Up to 50° C
| Price terms | Ex-works, Sari Ahmedabad |
| Delivery period | Within 1 week from the date of receipt of your order and full payment. |
| Payment terms | 100% advance |
| Insurance | To be borne by the customer |
| Freight charges | Paid basis |
| Handling charges | To be borne by the customer |
| Installation & commissioning | Installation to be done by you based on our instruction manual. On your request we can depute an engineer @ Rs. 7,500 per day plus GST extra for the commissioning. 2. To and fro charges and local boarding, lodging, conveyance to be arranged by you. |
| Warranty | Warranty against manufacturing defects, is for a period of 12 months from the date of supply. Warranty will be void if the instructions of our instruction / operation and maintenance manual are not followed. This warranty does not extend to consequential damages or loss, does not extend to and any item provided by customer required for running the system. Is null and void if repair or modifications are carried out without our approval in writing. |
Challenging application? Work with our engineers for your specific requirements.
-
