ViewAXIS Giga web video/print viewing system, with optical zoom
ViewAXIS Giga web video/print viewing system, with optical zoom
Couldn't load pickup availability

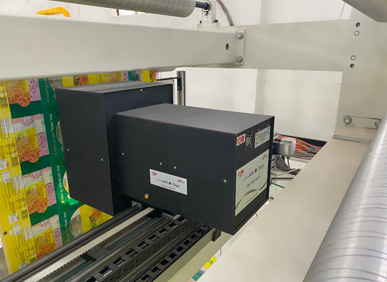

The ViewAXIS Giga is a camera-based print viewing system equipped with optical magnification capabilities. This system is designed to capture high-resolution, real-time, and superior-quality images of rapidly moving printed substrates on gravure, flexo, and offset printing presses.

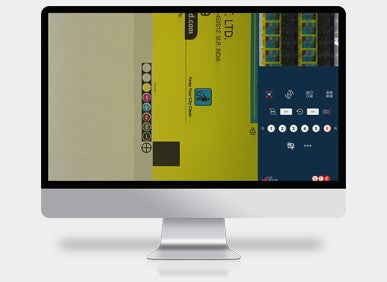

Featuring smooth traverse, an intuitive icon-based Graphic User Interface (GUI), and user-friendly touch-screen controls, the ViewAXIS Giga offers enhanced flexibility for inspecting fast-moving print webs. The optical magnification feature allows operators to zoom in on critical areas, providing a closer and more precise scrutiny of repeat sections that demand high precision.
- X-ray vision: removes upper layer of the image to see the defects hidden behind overlapping colours
- Image control including:
- Image rotation
- Horizontal and vertical flip
- Split screen
- Full repeat accessible at single touch
- Dynamic iris control
- Dual monitor concept
- Adaptable to different types of material
- User friendly interface
- Low power consumption
- Online diagnostics and support
Comparison between optical and digital zoom
| Optical zoom | Digital zoom | |
| Definition | Physical magnification of the lens | Simulation of the effect of a true zoom by cropping and enlarging the image using image processing |
| Quality | High | Low |
| Method | Physical movement of the lens elements | Cropping and enlarging the image |
| Image detail | Captures more detail and light as you zoom in | Loses image quality, as the image is just made larger by image processing |
| Preference | Preferred method for high-quality images | Often used as a backup option or when a camera doesn't have an optical zoom |
Technical specifications
| No. of memory positions | Full repeat accessible at any moment by touching the ROI (Region of Interest) from repeat thumbnail |
| Monitor | 32” full HD, LED backlit, touch screen Optional: dual monitor |
| Camera resolution | 1936 x 1464 (2.8 mega pixels) |
| Viewing area | 185 x140mm @ 1x optical zoom @ 266 DPI resolution 13 x10mm @ 14x optical zoom @ 3783 DPI resolution |
| Camera unit | True color camera |
| Area magnification | 14x optical zoom |
| Print speed | Maximum 1000m/min |
| Power supply | 230V AC, 50Hz |
