ViewAXIS Octa Web Videos / Print Viewing System
ViewAXIS Octa Web Videos / Print Viewing System
Couldn't load pickup availability

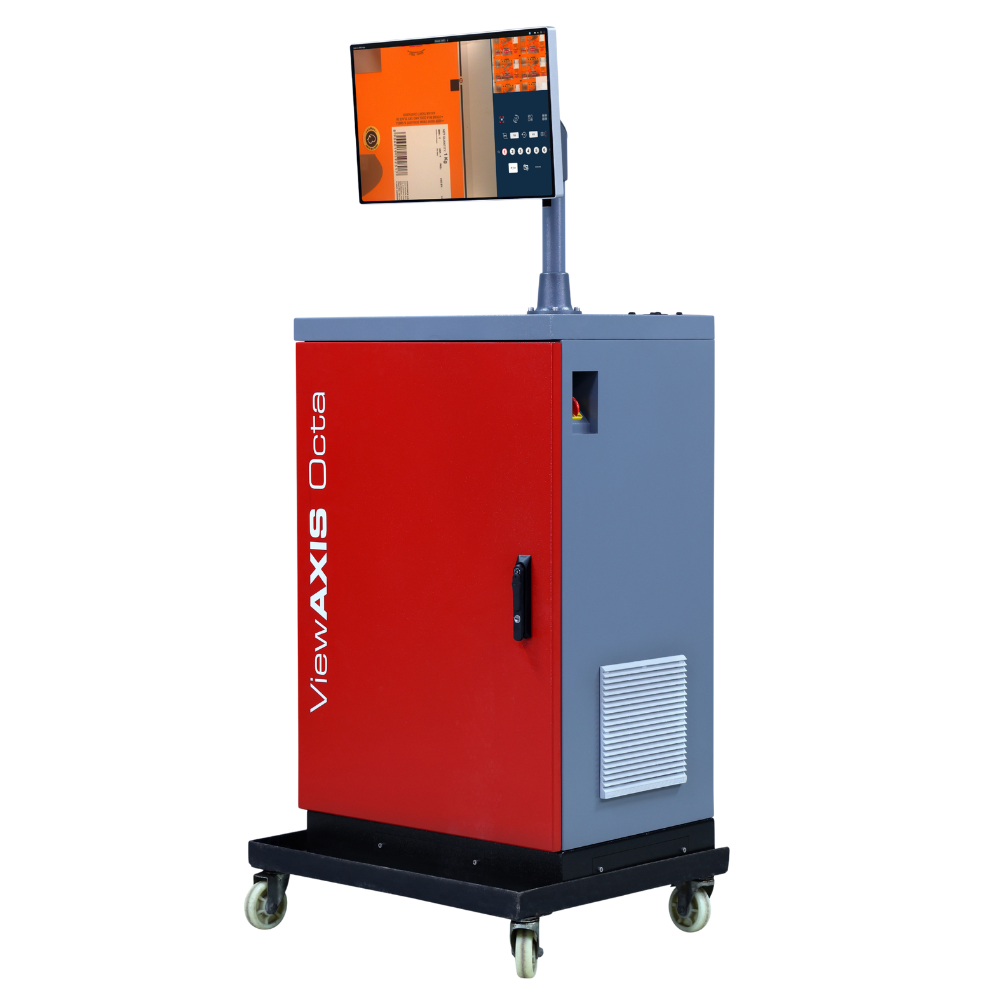

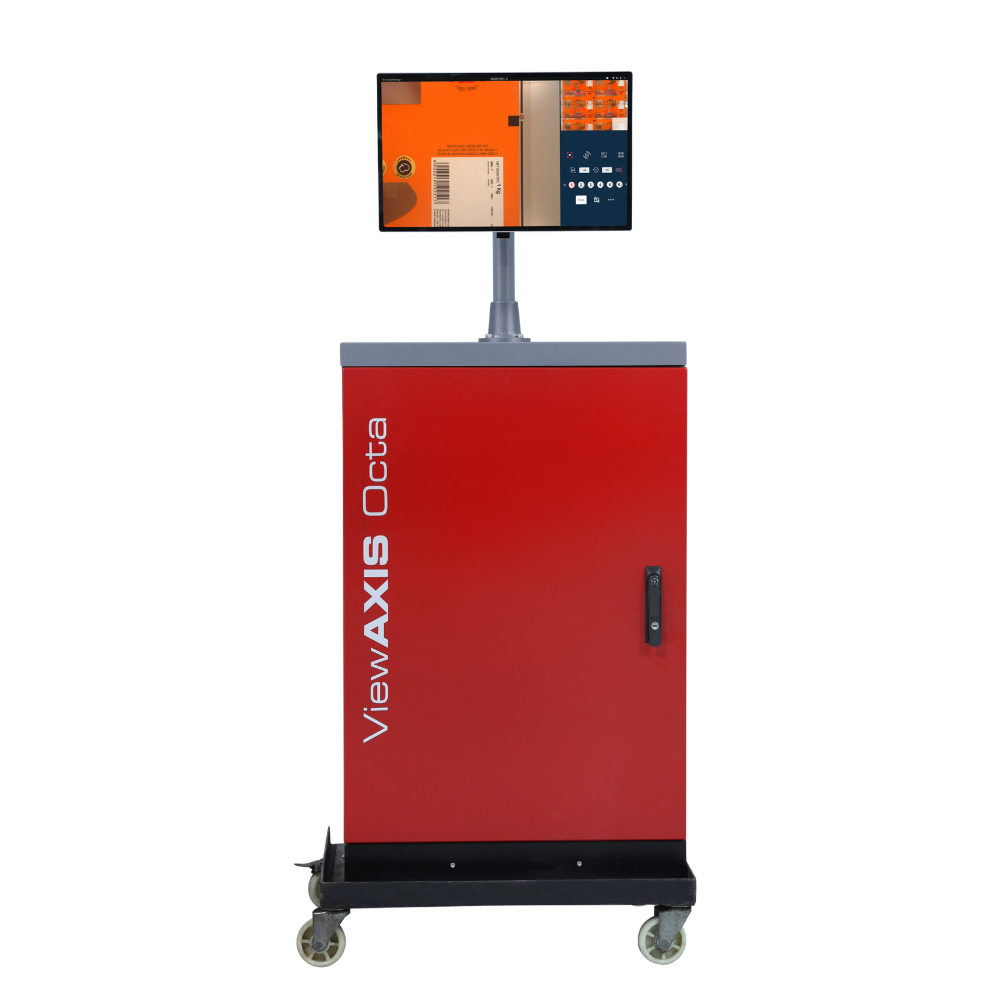

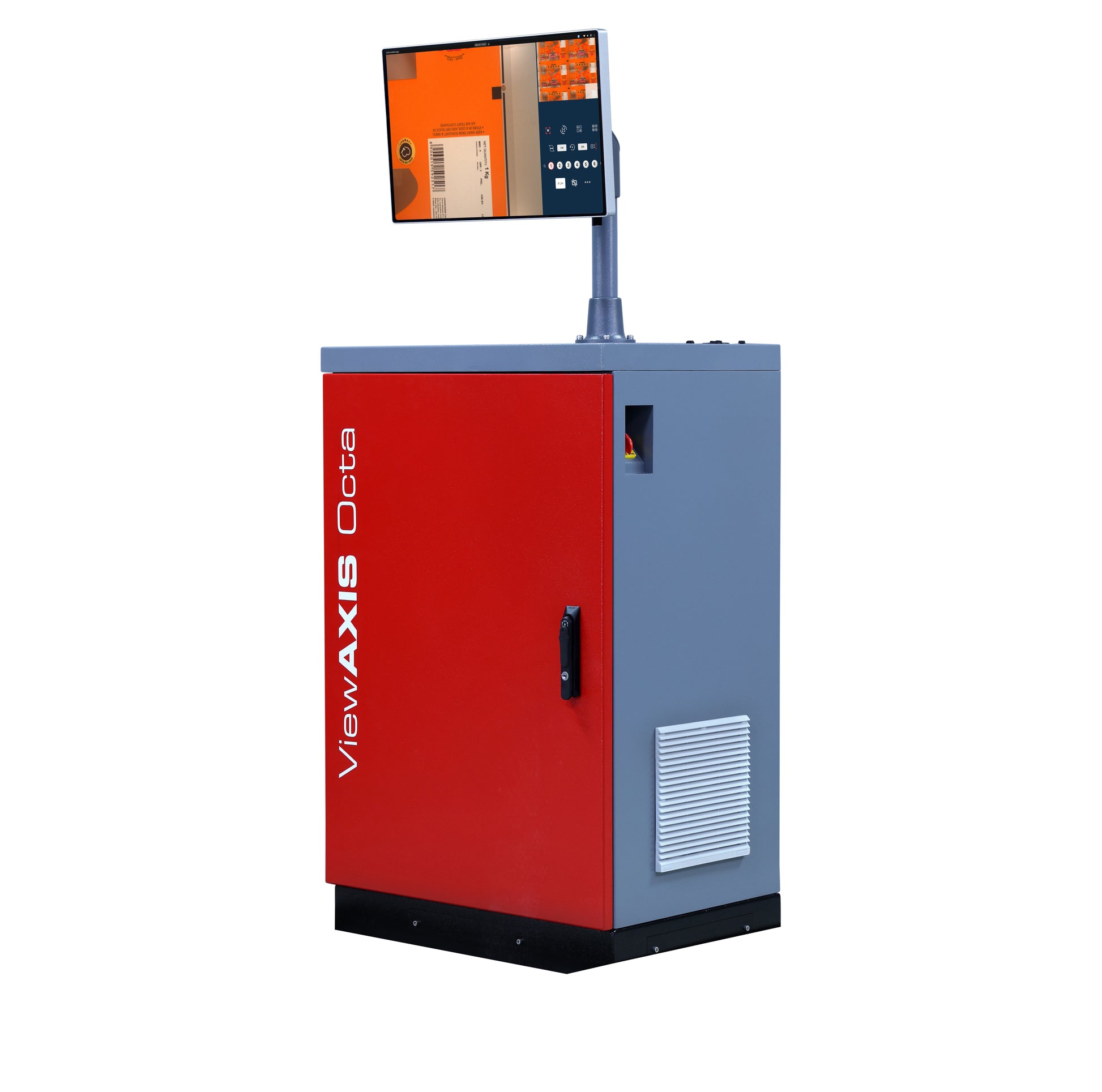

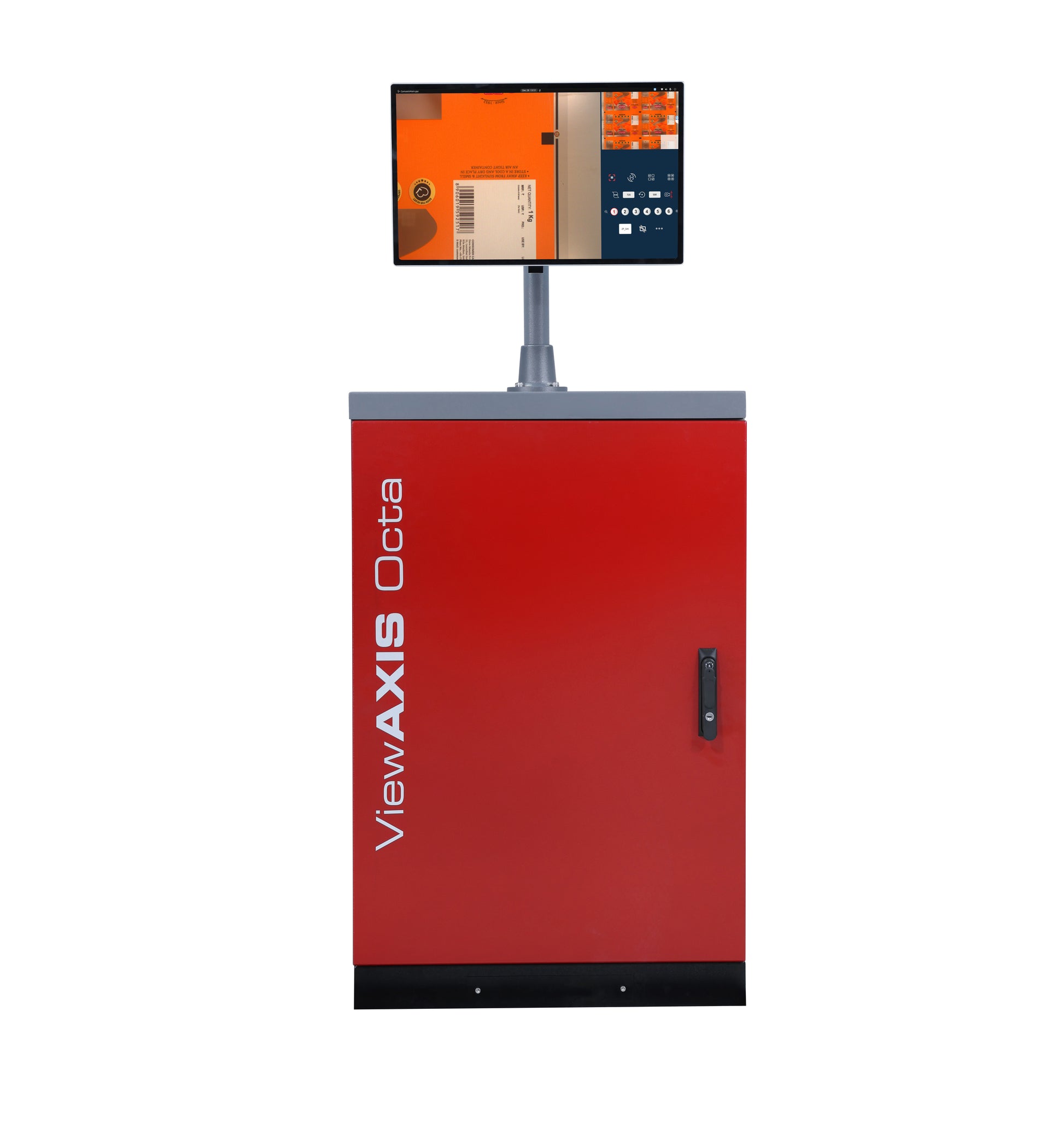

The ViewAXIS Octa—our latest advancement in web viewing systems with a view area of 200 x 146 mm, developed in direct response to industry demands for greater consistency and print quality across diverse film materials.
Powered by a high-resolution camera, the ViewAXIS Octa delivers crystal-clear images of moving printed substrates on gravure, flexo, and offset presses. Its enhanced features include “x-ray vision” and “pixel zoom” technology, enabling operators to detect even the subtlest defects with precision.

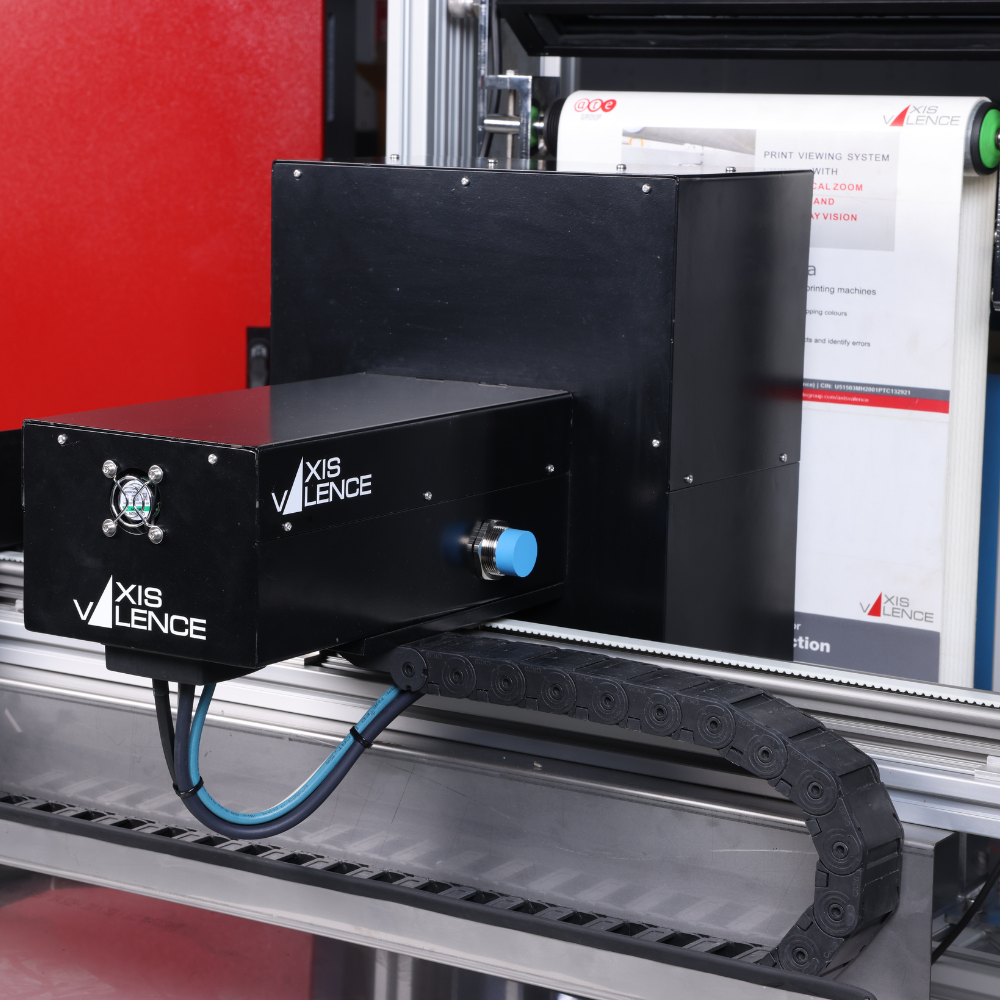

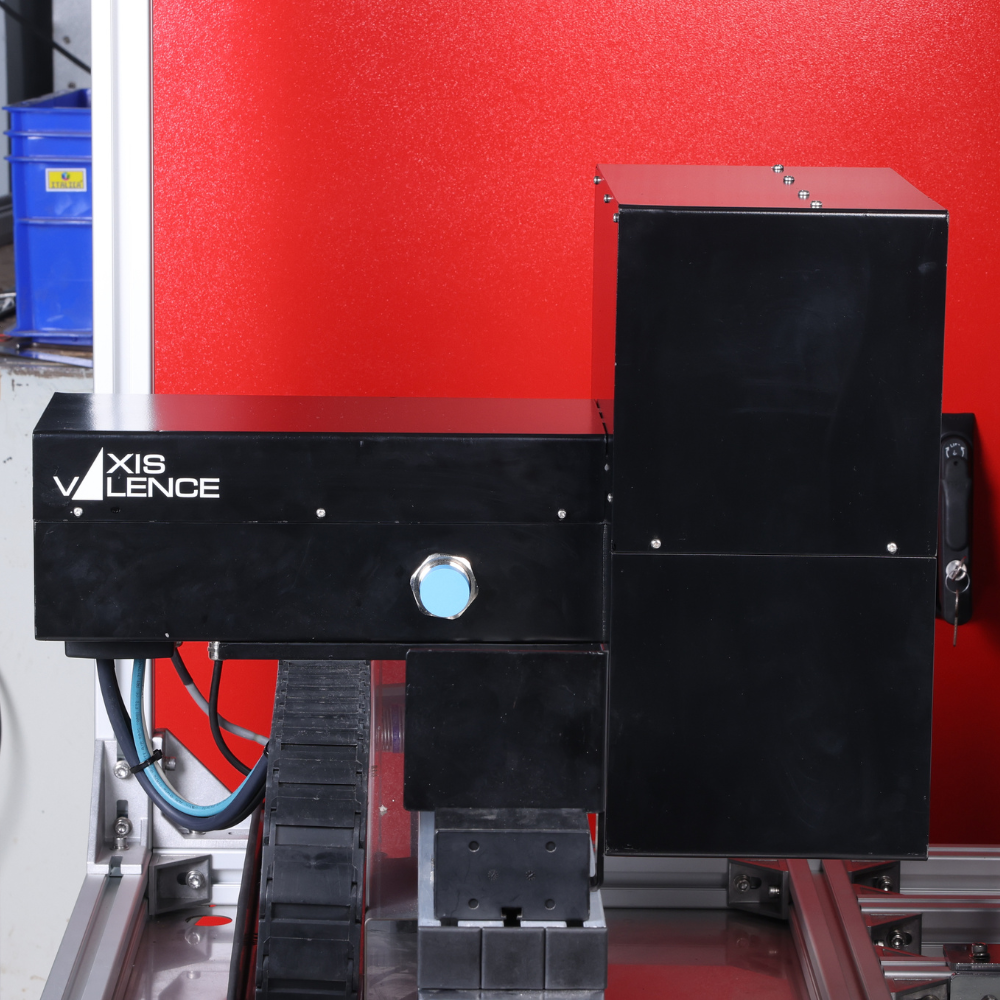

Engineered for efficiency, it features a smooth traverse mechanism, an intuitive icon-based GUI, and responsive touch-screen controls—delivering seamless, high-performance print viewing at production speeds.
- X-ray vision: hides the upper layer of the image to show the defects hidden behind overlapping colours and also hazing
- Image control including: a) image rotation b) horizontal and vertical flip
- Full repeat accessible at single touch that makes all positions of the entire print repeat accessible quickly and accurately
- Scan mode (displays all positions of repeat automatically)
- Selective scan mode (quickly moves between the selected positions on the repeat)
- Dynamic iris control
- Image brightness and contrast adjustment
- Adaptive to different substrates
- Low power consumption
- Reduce material waste, thereby saving money and environment
- Improve productivity by shortening time to access defects while printing
- Enhance customer satisfaction
- Easy installation and user-friendly interface
- Online diagnose and support
| Memory positions count | Full repeat accessible at any time by touching the ROI (region of interest) from repeat thumbnail |
| Monitor | 24” full HD, LED backlit, touch screen Optional: dual monitor |
| Camera resolution | 4096 x 3000 (12.3 mega pixels) |
| Viewing area | 200 x146 mm without pixel zoom 25 x 18 mm with 8x pixel zoom and 520 DPI (continuously throughout pixel zoom) |
| Camera unit | True color camera |
| Area magnification | 8x smart pixel zoom for loss less zoom experience |
| Print speed | Maximum 1000m/min |
| Power supply | 230V AC, 50Hz |
