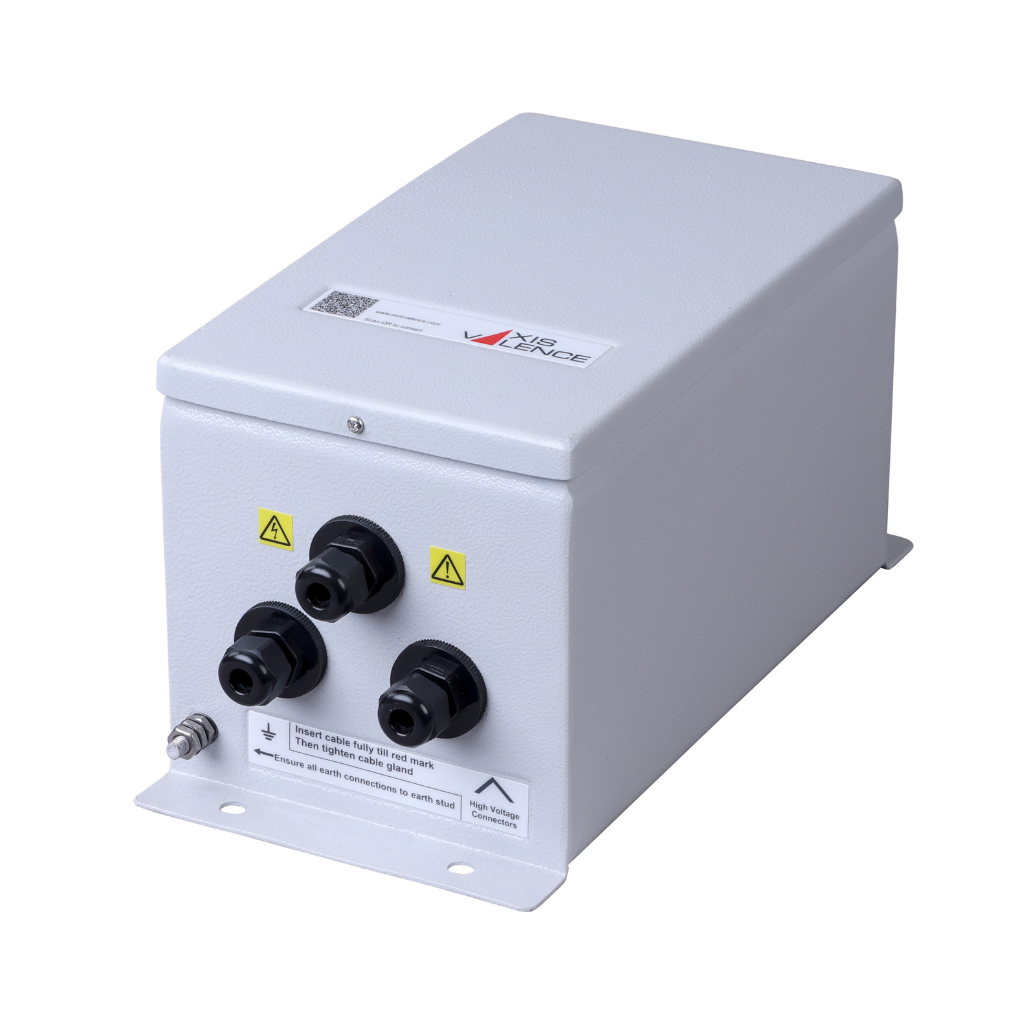

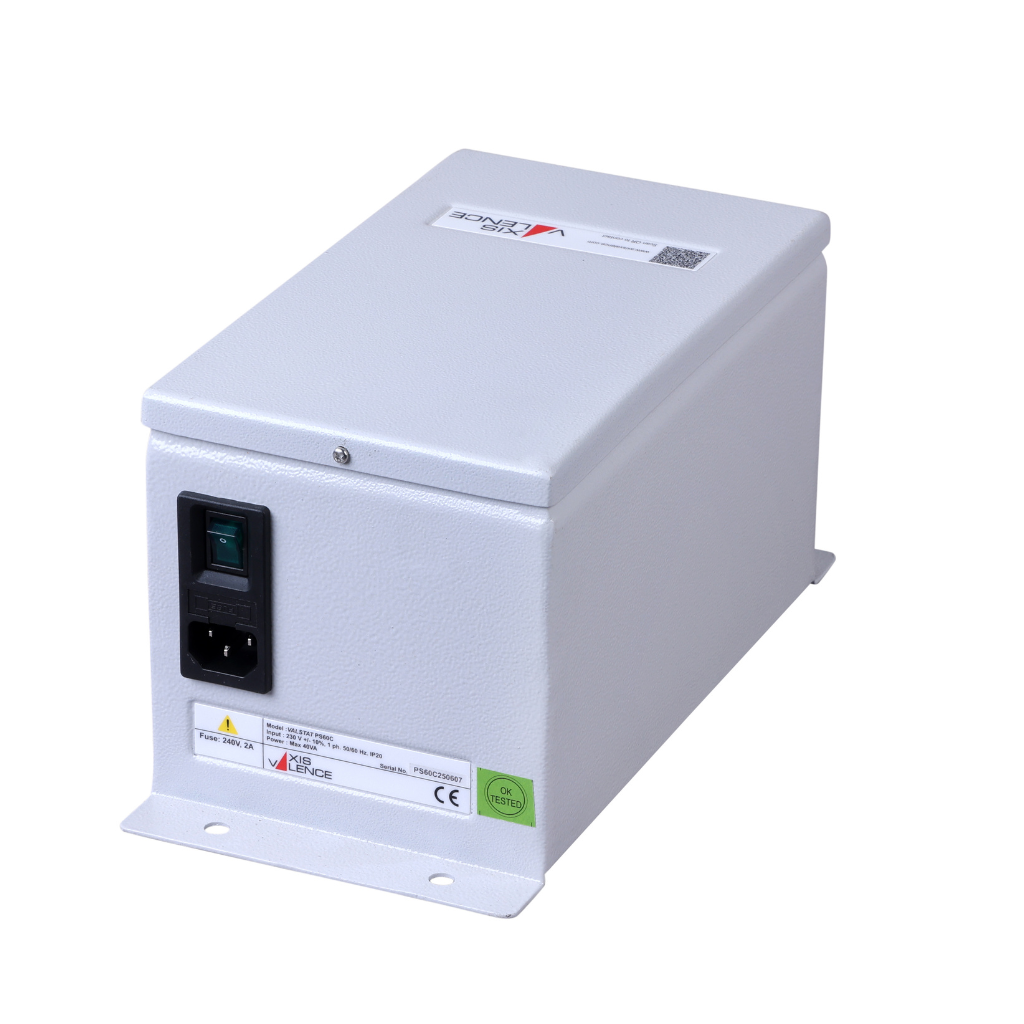

Valstat® PS60C HV ACpowersource CE,On/Off illumina ted switch,I/P: 1 Ph (L-N),230VAC ± 10%, 50/60 Hz. S-COM 21032

Valstat® PS60C HV ACpowersource CE,On/Off illumina ted switch,I/P: 1 Ph (L-N),230VAC ± 10%, 50/60 Hz. S-COM 21032

Price: ₹ 25,047.00
₹ 25,047.00
Sale Sold out
ENQUIRE NOW Enquiry icon PDF
View full details

Valstat PS60C powersource is low power, high voltage power supplies, suitable for ATEX certified VR20XA static eliminating bars and CE certified VR30C and VR32C static eliminating bars. They are provided with built-in current limit and hence adequately safe to the user.

Material:
  • Sheet metal powder coated, IP20

Product category:
  • Electrostatic Control Solutions for Industrial Applications

Industry:
  • Printing, coating & conversion,
  • Packaging,
  • Plastic,
  • Rubber,
  • Textile,
  • Non-wovens,
  • Pharma,
  • Wood,
  • Automobile,
  • White Goods,
  • Others

  • CE certified
  • Input supply: 230V AC ±10%, 50/60Hz, single phase
  • Input connection: To be used with certified European power cord (3x0.75 sq.mm), plug and appliance coupler suitable for C14 type appliace inlet
  • Ambient temperature: 0 to 50 °C
  • Ambient humidity: Up to 85% RH, non condensing
  • Power: 40VA
  • Output connections: 3 plug-in type HV connections
  • Nominal output voltage: 6kV
  • Output current: 4 mA
  • Weight: 3.3 kg
As per manual
  1. Powersource unit
  2. Installation manual
Price terms Ex-works, Sari Ahmedabad
Delivery period Within 1 week from the date of receipt of your order and full payment.
Payment terms 100% advance
Insurance To be borne by the customer
Freight charges Paid basis
Handling charges To be borne by the customer
Installation & commissioning Installation to be done by you based on our instruction manual. On your request we can depute an engineer @ Rs. 7,500 per day plus GST extra for the commissioning. 2. To and fro charges and local boarding, lodging, conveyance to be arranged by you.
Warranty Warranty against manufacturing defects, is for a period of 12 months from the date of supply. Warranty will be void if the instructions of our instruction / operation and maintenance manual are not followed. This warranty does not extend to consequential damages or loss, does not extend to and any item provided by customer required for running the system. Is null and void if repair or modifications are carried out without our approval in writing.
