Axisvalence

Valstat® PS74U HV AC power source STD 2 m 3 core (L-N-E) cable,On/Off illuminated switch.

Valstat® PS74U HV AC power source STD 2 m 3 core (L-N-E) cable,On/Off illuminated switch.

Price: ₹ 22,334.00
₹ 22,334.00
Sale Sold out
Shipping calculated at checkout.
ENQUIRE NOW Enquiry icon PDF
View full details

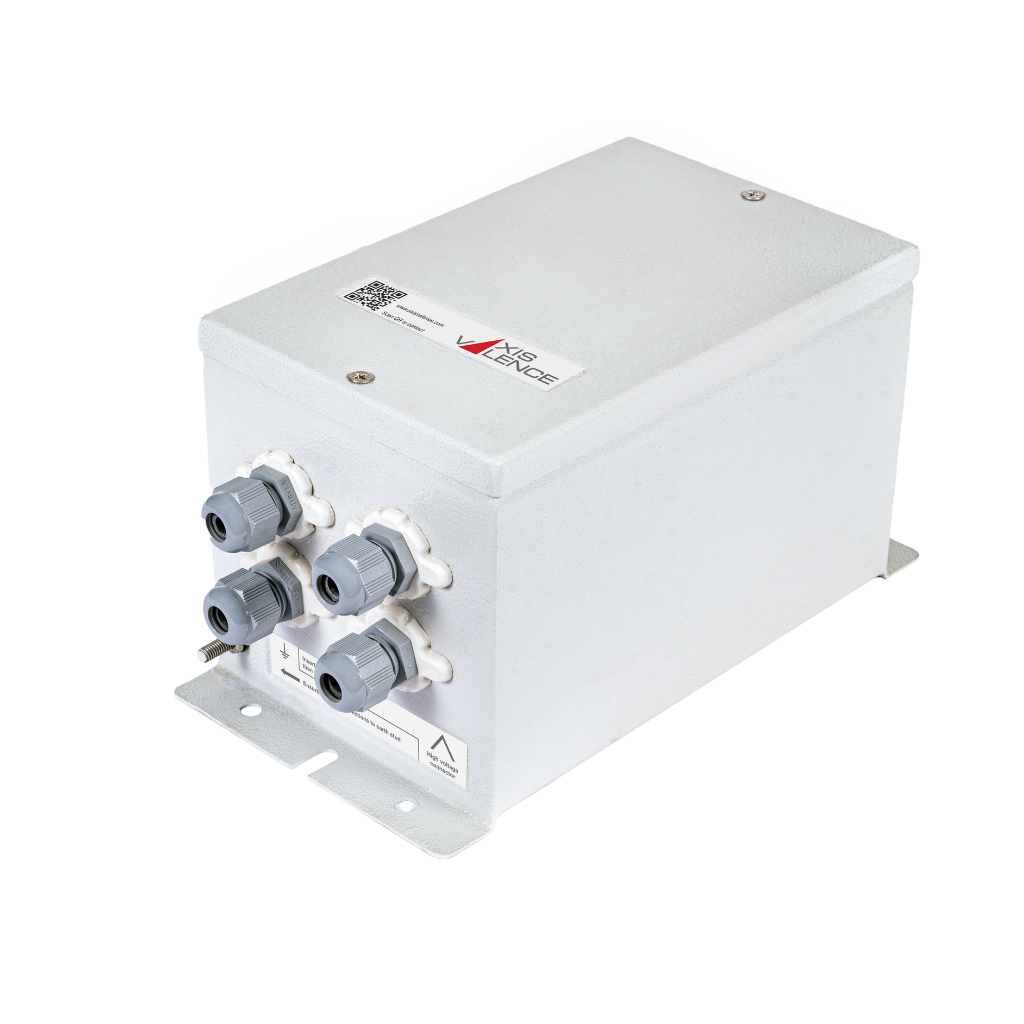

Valstat PS74U powersource is low power, high voltage power supplies, suitable for Valstat VS20 static eliminator. They are provided with built-in current limit and hence adequately safe to the user.

Material:
  • Sheet metal powder coated

Industry:
  • Printing, coating & conversion,
  • Packaging,
  • Plastic,
  • Rubber,
  • Textile,
  • Non-wovens,
  • Pharma,
  • Wood,
  • Automobile,
  • White Goods,
  • Others

  • Input supply: 240V AC ±10%, 50Hz± 5%, single phase
  • Main power supply cable: 2 meter, 3 core (L-N-E) cable
  • Ambient temperature: 0 to 50 °C
  • Ambient humidity: Up to 85% RH, non condensing
  • Power: 40VA
  • Output connections: 4 nos plug-in type HV connections
  • Nominal output voltage: 7kV
  • Output current: 4 mA
  • Weight: 3.3 kg
  • Recommended static eliminators: VS20
As per manual
  1. Powersource unit
  2. Installation manual
Price terms Ex-works, Sari Ahmedabad
Delivery period Within 1 week from the date of receipt of your order and full payment.
Payment terms 100% advance
Insurance To be borne by the customer
Freight charges Paid basis
Handling charges To be borne by the customer
Installation & commissioning Installation to be done by customer based on our instruction manual. On customer request we can depute an engineer @ Rs. 7,500 per day plus GST extra for the commissioning. 2. To and fro charges and local boarding, lodging, conveyance to be arranged by customer.
Warranty Warranty against manufacturing defects, is for a period of 12 months from the date of supply. Warranty will be void if the instructions of our instruction / operation and maintenance manual are not followed. This warranty does not extend to consequential damages or loss, does not extend to and any item provided by customer required for running the system. Is null and void if repair or modifications are carried out without our approval in writing.
