Valstat® CS12-750 - an ionising air blower with static eliminator & 3Meters HV cable STD

Valstat® CS12-750 - an ionising air blower with static eliminator & 3Meters HV cable STD

Price: ₹ 59,986.00
₹ 59,986.00
Sale Sold out
ENQUIRE NOW Enquiry icon PDF
View full details

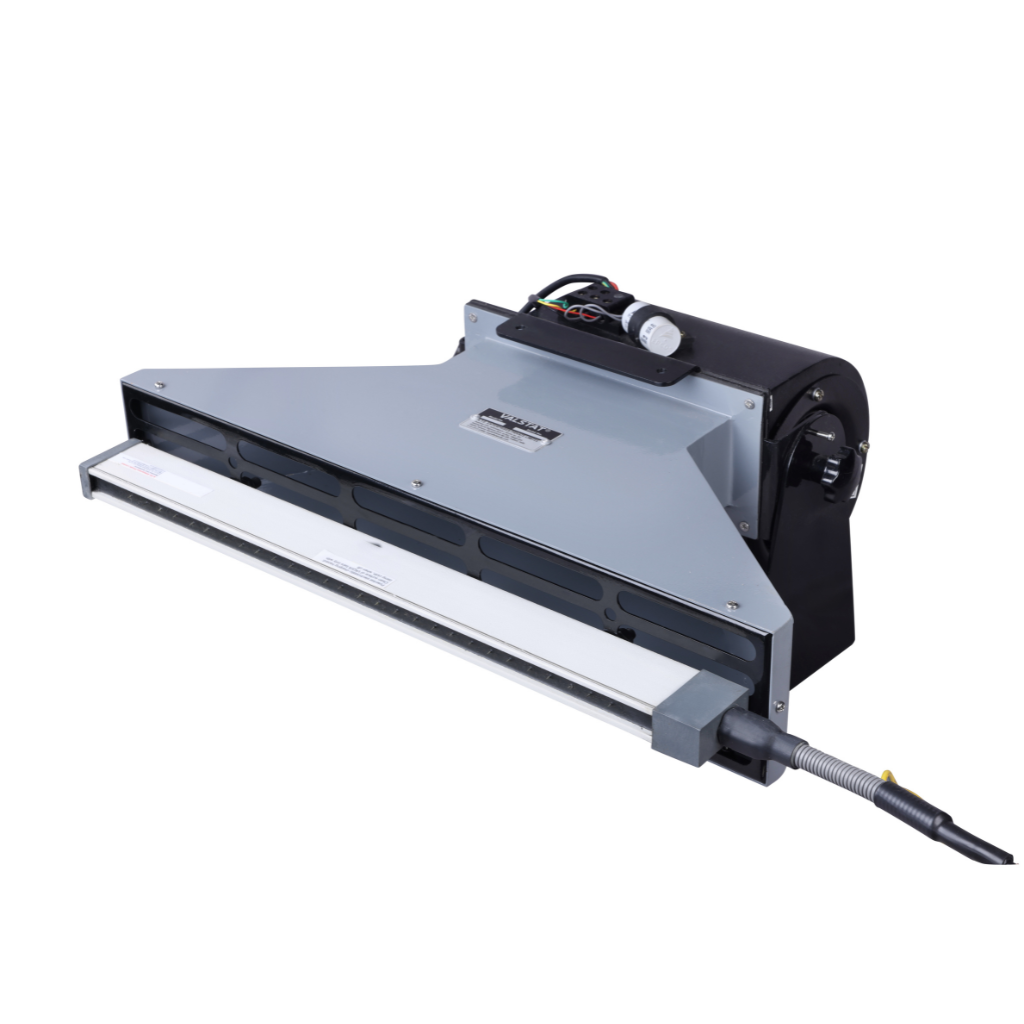

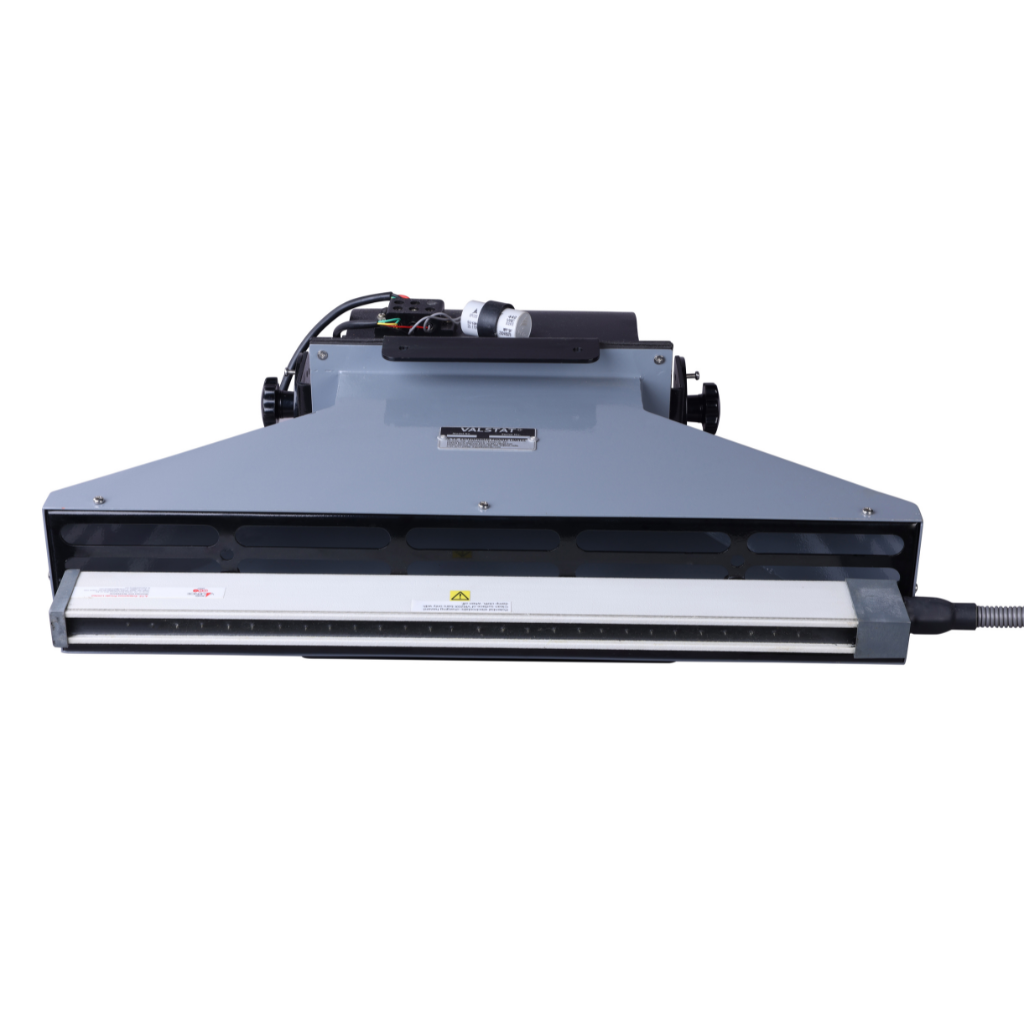

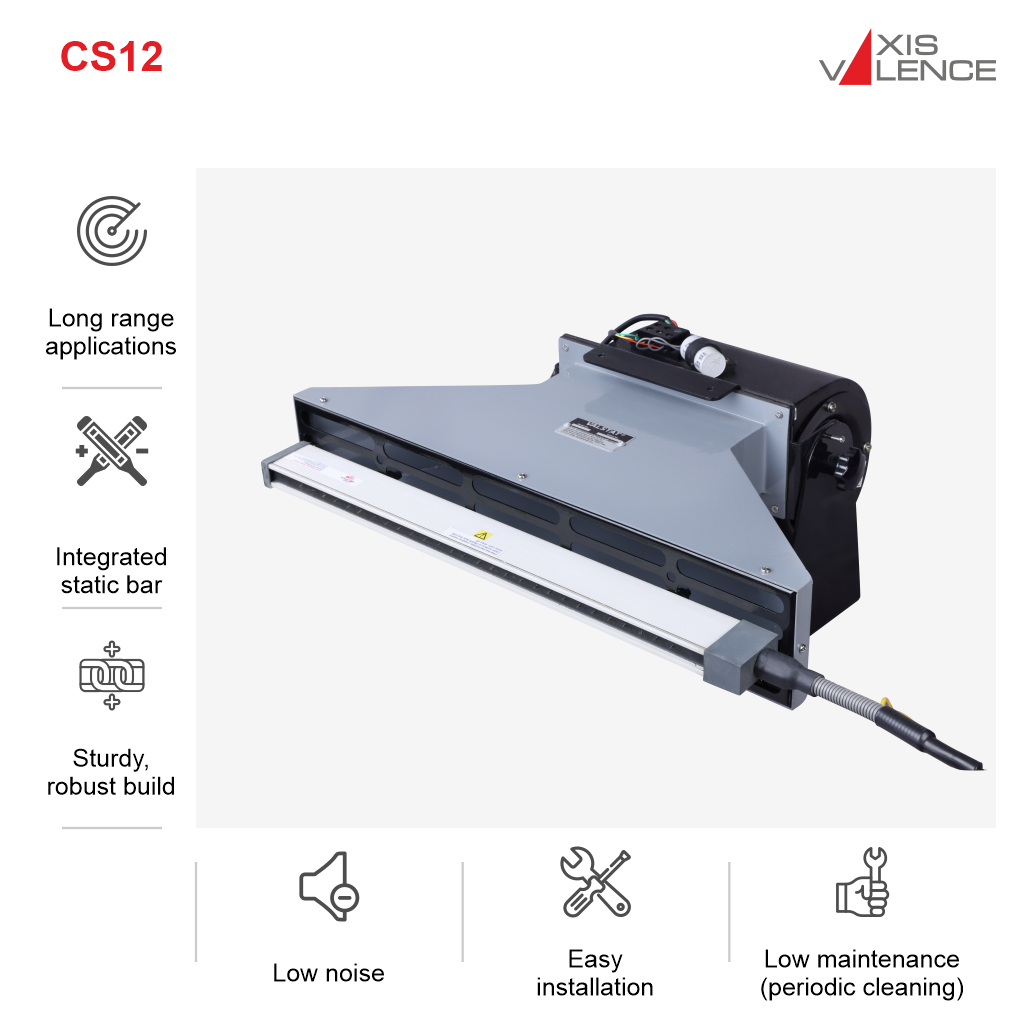

Valstat CS12 series static eliminator is an ionising air blower, which is a combination of a single-phase blower and a Valstat static eliminating unit. Ambient air is drawn from either side of the blower and blown over the static eliminating bars. The output is, therefore, an ionised air flow that eliminates static over a wide range and is also a very effective blow-off cleaner for removal of dust and debris.

Material:
  • Powder coated MS

Recommended Power Source:

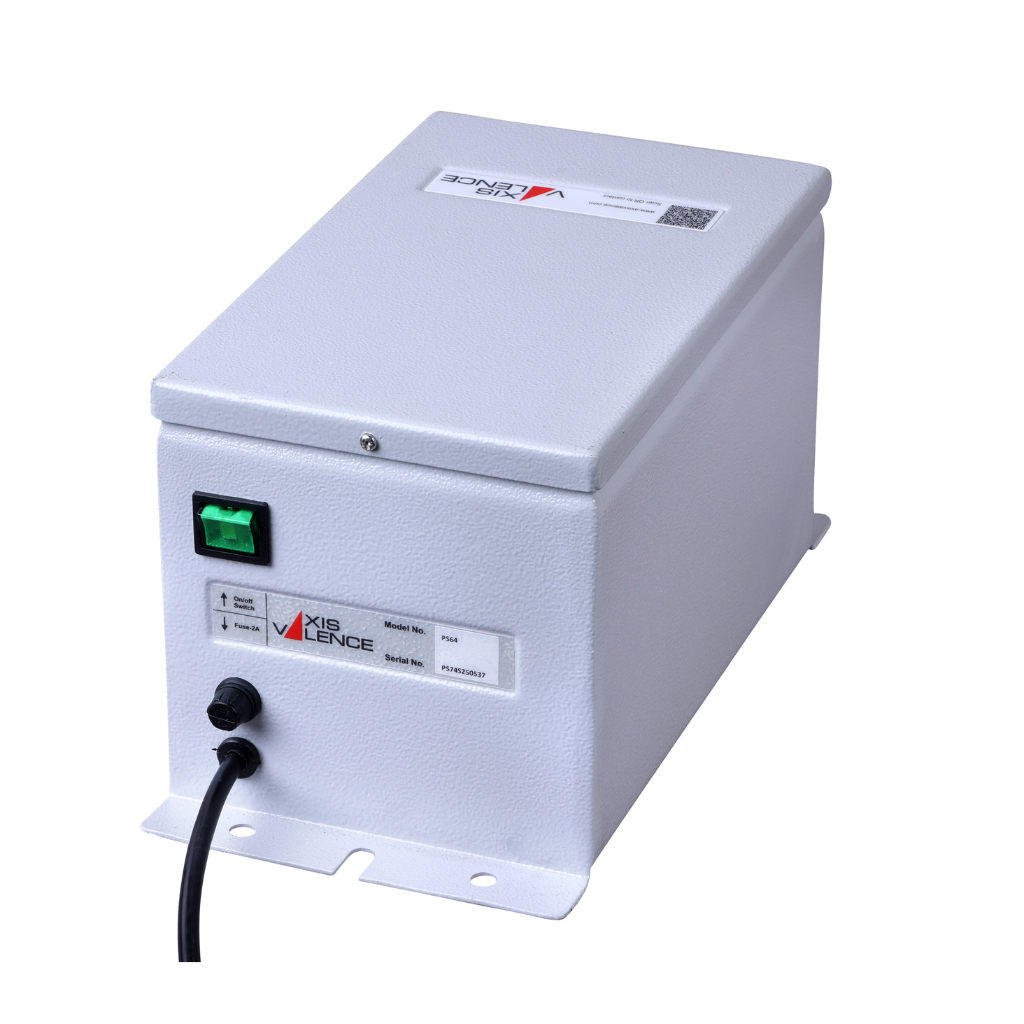

  • PS64

Product category:
  • Electrostatic Control Solutions for Industrial Applications

Industry:
  • Printing, coating & conversion,
  • Packaging,
  • Plastic,
  • Rubber,
  • Textile,
  • Non-wovens,
  • Pharma,
  • Wood,
  • Automobile,
  • White Goods,
  • Others

  1. Maintenance free, except occasional cleaning
  2. Easy installation and commissioning
  3. Provides high voltage output even under severe operating conditions
  • Available in effective lengths 500mm and 750mm (Higher length can be ordered separately)
  • Recommended powersource: PS64
  • Operating volatge: 6kV AC 50/60Hz
  • HV connection: 6kV AC from PS64
  • Mounting distance:1000mm from the substrate
As per manual
Price terms Ex-works, Sari Ahmedabad
Delivery period Within 4 weeks from the date of receipt of your order and full payment.
Payment terms 100% advance
Insurance To be borne by the customer
Freight charges Paid basis
Handling charges To be borne by the customer
Installation & commissioning Installation to be done by you based on our instruction manual. On your request we can depute an engineer @ Rs. 7,500 per day plus GST extra for the commissioning. 2. To and fro charges and local boarding, lodging, conveyance to be arranged by you.
Warranty Warranty against manufacturing defects, is for a period of 12 months from the date of supply. Warranty will be void if the instructions of our instruction / operation and maintenance manual are not followed. This warranty does not extend to consequential damages or loss, does not extend to and any item provided by customer required for running the system. Is null and void if repair or modifications are carried out without our approval in writing.

Challenging application? Work with our engineers for your specific requirements.
